COMPRESSION FITTINGS (C)

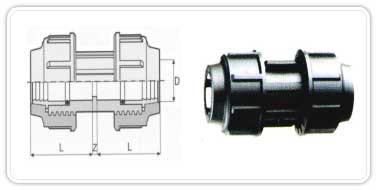

Coupling (CP)



Range

Dimension
DXD L Z
16x16 45 4
20x20 50 4
25x25 57 4
32x32 64 4
40x40 76 4
50x50 88 4
63x63 103 9
75x75 118 4
90x90 136 5
110x110 151 4



CODE

JP-C-CP001
JP-C-CP002
JP-C-CP003
JP-C-CP004
JP-C-CP005
JP-C-CP006
JP-C-CP007
JP-C-CP008
JP-C-CP009
JP-C-CP010

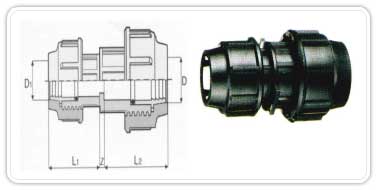

Reducer Coupling (RC)



Range

Dimension
DXD L1 L2 Z
20x16 40,5 50 4
25x20 50 57 4
32x20 50 57,5 4
32x25 53 58 4
40x25 57 76 76
40x32 64 76 4
50x25 57 88 4
50x32 64 88 4
50x40 76 88 4
63x32 64 103 4
63x40 76 103 4
63x50 88 103 4
75x50 88 118 4
75x63 103 118 4
90x63 103 136 4
90x75 118 136 4
110x75 118 151 4
110x90 136 151 4

CODE

JP-C-RC001
JP-C-RC002
JP-C-RC003
JP-C-RC004
JP-C-RC005
JP-C-RC006
JP-C-RC007
JP-C-RC008
JP-C-RC009
JP-C-RC010
JP-C-RC011
JP-C-RC012
JP-C-RC013
JP-C-RC014
JP-C-RC015
JP-C-RC016
JP-C-RC017
JP-C-RC018
