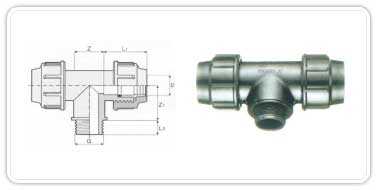

Range |
Dimension |
|
DXD |
L1 |
L2 |
Z |
|
16x1/2"x16 |
45 |
18 |
22 |
|
20x1/2"x20 |
50 |
18 |
26 |
|
20x3/4"x20 |
50 |
20 |
26 |
|
20x3/4"x25 |
57 |
20 |
30 |
|
25x1"x25 |
57 |
20 |
30 |
|
32x1"x32 |
64 |
20 |
38 |
|
32x1 1/4"x32 |
64 |
24 |
38 |
|
40x1 1/4"x40 |
76 |
24 |
46 |
|
40x1 1/2"x40 |
76 |
24 |
46 |
|
50x1 1/2"x50 |
88 |
24 |
56 |
|
50x2"x50 |
88 |
29 |
56 |
|
63x2"x63 |
103 |
29 |
70 |
|
63x2 1/2"x63 |
103 |
32 |
70 |
|
75x2 1/2"x75 |
118 |
32 |
82 |
|
75x3"x75 |
118 |
38 |
82 |
|
90x3"x90 |
125 |
38 |
97 |
|
90x4"x90 |
125 |
44 |
97 |
|
110x4"x110 |
144 |
44 |
119 |
|
|
|
CODE |
| JP-C-TMT001 |
| JP-C-TMT002 |
| JP-C-TMT003 |
| JP-C-TMT004 |
| JP-C-TMT005 |
| JP-C-TMT006 |
| JP-C-TMT007 |
| JP-C-TMT008 |
| JP-C-TMT009 |
| JP-C-TMT010 |
| JP-C-TMT011 |
| JP-C-TMT012 |
| JP-C-TMT013 |
| JP-C-TMT014 |
| JP-C-TMT015 |
| JP-C-TMT016 |
| JP-C-TMT017 |
| JP-C-TMT018 |
|
|
|
|

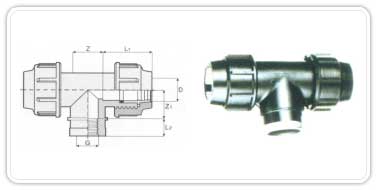

Range |
Dimension |
|
DXD |
L1 |
L2 |
Z |
|
16x3/8"x16 |
45 |
19 |
22 |
|
16x1/2"x16 |
45 |
19 |
22 |
|
20x1/2"x20 |
50 |
19 |
26 |
|
20x3/4"x20 |
50 |
19 |
26 |
|
25x1/2"x25 |
57 |
19 |
30 |
|
25x3/4"x25 |
57 |
21 |
30 |
|
25x1"x25 |
57 |
21 |
30 |
|
32x1/2"x32 |
64 |
19 |
38 |
|
32x3/4"x32 |
64 |
21 |
38 |
|
32x1"x32 |
64 |
21 |
38 |
|
32x1 1/4"x32 |
64 |
25 |
38 |
|
40x1"x40 |
76 |
21 |
46 |
|
40x1 1/4x40 |
76 |
25 |
46 |
|
40x 1 1/2"x40 |
76 |
25 |
46 |
|
50x1 1/2"x50 |
88 |
25 |
56 |
|
50x2"x50 |
88 |
25 |
56 |
|
63x2"x63 |
103 |
30 |
70 |
|
63x2 1/2"x63 |
103 |
33 |
70 |
|
75x2"x75 |
118 |
33 |
82 |
|
75x3"x75 |
118 |
36 |
82 |
|
90x3"x90 |
136 |
36 |
98 |
|
90x4"X90 |
136 |
40 |
98 |
|
110X4'X110 |
151 |
40 |
120 |
|
|
|
CODE |
| JP-C-TFT001 |
| JP-C-TFT002 |
| JP-C-TFT003 |
| JP-C-TFT004 |
| JP-C-TFT005 |
| JP-C-TFT006 |
| JP-C-TFT007 |
| JP-C-TFT008 |
| JP-C-TFT009 |
| JP-C-TFT010 |
| JP-C-TFT011 |
| JP-C-TFT012 |
| JP-C-TFT013 |
| JP-C-TFT014 |
| JP-C-TFT015 |
| JP-C-TFT016 |
| JP-C-TFT017 |
| JP-C-TFT018 |
| JP-C-TFT019 |
| JP-C-TFT020 |
| JP-C-TFT021 |
| JP-C-TFT022 |
| JP-C-TFT023 |
|
|
